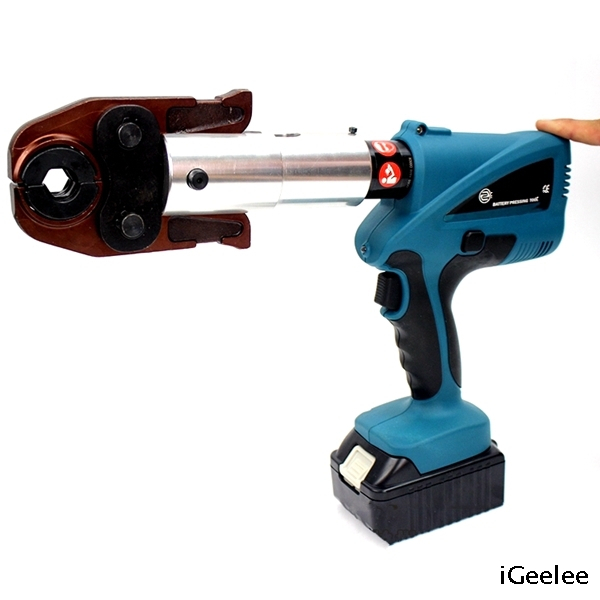

BZ-1528 Battery Operated Pressing Clamping Tool
You are here: Home » Products » Pipe Installation Tools » Battery Pipe Tools » BZ-1528 Battery Operated Pressing Clamping Tool
BZ-1528 Battery Operated Pressing Clamping Tool BZ-1528 Battery Operated Pressing Clamping Tool
BZ-1528 Battery Operated Pressing Clamping Tool BZ-1528 Battery Operated Pressing Clamping Tool
BZ-1528 Battery Operated Pressing Clamping Tool BZ-1528 Battery Operated Pressing Clamping Tool
BZ-1528 Battery Operated Pressing Clamping Tool BZ-1528 Battery Operated Pressing Clamping Tool

loading

BZ-1528 Battery Operated Pressing Clamping Tool

Share to:
sharethis sharing button
Aplications:Copper, Stainless Steel, Multi-layer composite Pipe, Pex Pipe
  • BZ-1528

  • iGeelee

Availability:
Quantity:

BZ-1528 Battery Crimping Tool for 12-28mm

TECHNICAL
Aplications: Copper, Stainless Steel, Multi-layer composite Pipe, Pex Pipe
Crimping range 12-28mm
Crimping force 24KN
Package plastic box
Stroke 35mm
Voltage 18V
Capacity DC 18 V,1.5Ah
Battery 2pcs
Charger 1pc
ACCESSORIES
Crimping die Depend on the size of the pipe with fitting
Sealing ring of cylinder  1set
Sealing ring of safety valve  1set

Two type of jaws


BZ-1528 Battery Crimping Tool for crimping Cpper, Staninless steel, PVC, PEX,XPAP pipe

1.Micro computer control system-automatically detect the pressure when it is crimping,with double safety protect.

2.The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.

3.If a deviation from the set operation pressure or low battery charges is identified,an acoustic aignal sounds and a red display flashes.

4.Li-ion batteries do neither have a memory effect nor self discharge.Even after long periods of non operation the tool is always ready to operate.In addition we see a power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.

5.A temperature sensor makes the tools stop working automatically when the temperature over 60℃ under long time working,the fault signal sounds,it means the tool can't continue work until the temperature reduced to the normal.
