|Rated crimping force||32KN|
|Rated working pressure||52Mpa|
|Crimp/charge||350 times(DN 20 Stainless steel pipe)|
|Battery||18V 3.0Ah Li-ion|
|Sealing ring of cylinder||1set|
|Sealing ring of safety valve||1set|

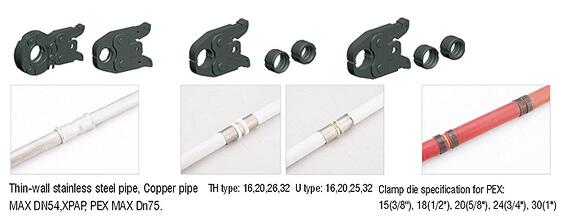

Clamp die specification for thin-wall stainless steel pipe,copper pipe
(nominal outer diameter)
|Clamp die specification for XPAP|| |
|Clamp die specification for PEX||15(3/8"),18(1/2"),20(5/8"),24(3/4"),30(1")|
|NOTE:ln order to meet demand please provide appropriate size and a standard of tube when place order.|

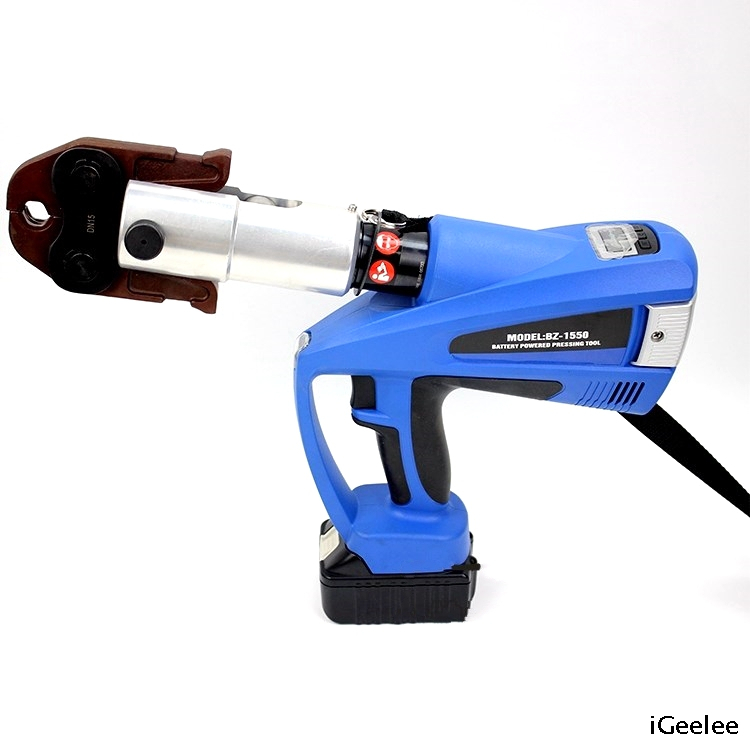

Battery Pex Crimping Tools EZ-1550 for 50Mpa Rated working pressure, can work on -10℃~40℃ Working temperature, 32KN rated crimping force,Piston stroke: 40mm
High performance Li-ion battery to provide stronger power source, no discharge memory effects,
1. Sudden suspend.
2. Ergonomic design with antislip handle.
3. Micro computer control system with the feature of self- pressure inspecting, double protection during operation, counting and realize the exchange between computer with data by the converter.
4. High performance Li-ion battery to provide stronger power source, no discharge memory effects, one time charge 300 times can be effective for crimping.
5. LED light make your working comfortable in dark environment.
