Electro Pipe Fitting Tool BZ-1632 with Li-ion Battery, for Crimping Range of 16-32mm

Share to:

Crimping force 60KN Crimping die for TH type Φ16mm, Φ20mm, Φ26mm, Φ32mm

  • BZ-1632
  • iGeelee
Quantity:

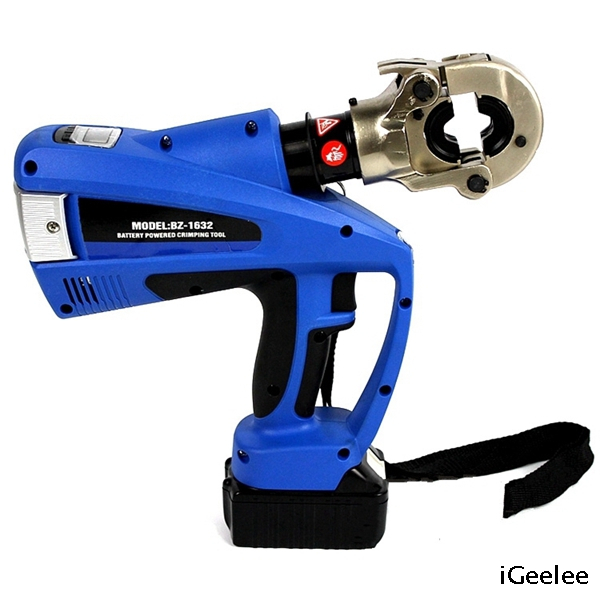

Electro Pipe Fitting Tool BZ-1632 with crimping range of 16-32mm

Crimping force      60KN
Stroke      17mm
Crimping/ Charges      320 times
Cutting cycle        3s-6s
Battery voltage      18V
Battery capacity      3.0 Ah
Charging time      2hours
Package      Plastic case
Crimping die for SV type      Φ16mm, Φ20mm, Φ25mm
Crimping die for H type

Φ16mm, Φ20mm, Φ25mm, Φ32mm

Crimping die for TH type

Φ16mm, Φ20mm, Φ26mm, Φ32mm


 Note: The accessories type used at optional.

JAWS EZ BZ 1632-1550.jpg

Electro Pipe Fitting Tool BZ-1632 and EZ-1632 Pex Crimping Tools,crimping force for 60KN and clamping cycle for 3-6s

 The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.

 A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.

 The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.

 The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.

 Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.

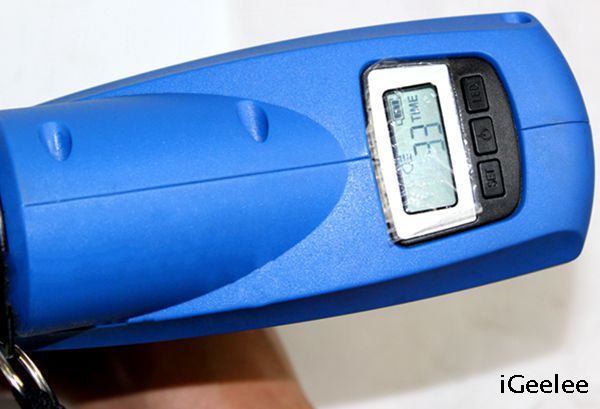

 A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
