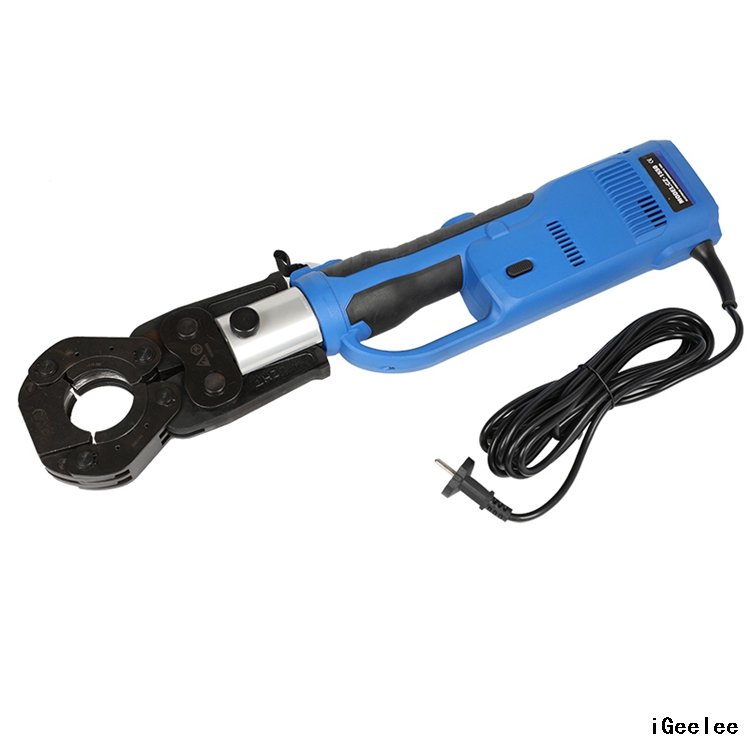

CZ-1550 DC Electrical Pressing Clamping Tools

Share to:

iGeelee CZ-1550 DC Electrical Pressing Clamping Tools, Different pipes in different material caused pressure changes accordingly.

  • CZ-1550
  • iGeelee
Quantity:

CZ-1550 DC Electrical Pressing Clamping Tools


Description

DC-Handheld Electrical Power

Hydraulic tool

Rated power 32KN
Stroke 40mm
Crimping range

Thin-wall stainless steel pipe,

copper pipe12-54mm

Pex pipe. XPAP12-108mm
NoteDifferent pipes in different material caused pressure changes accordingly.
Pressing cycle 4s ( DN25-SS304)
VAC 220V 50/60HZ
Rated power 490W
Working temperature -10℃∽+50℃
Measurement 450x81x130( without jaws)



FEATURE

Safety: Micro computer control system. Piston retracted automatically when up to preset value

Efficient: High performance motor with double speed hydraulic system promote the pressing process within 4s.

Reliable: Sustainable using add up to 30000 pressing cycles.

Portable: Ergonomic design, straight shank design, portable to bring and operating.

Note: working in varied working temperature, pressing cycle will be changed according to different material pipes.
