Hydraulic Tools To Make Your Job Easier!

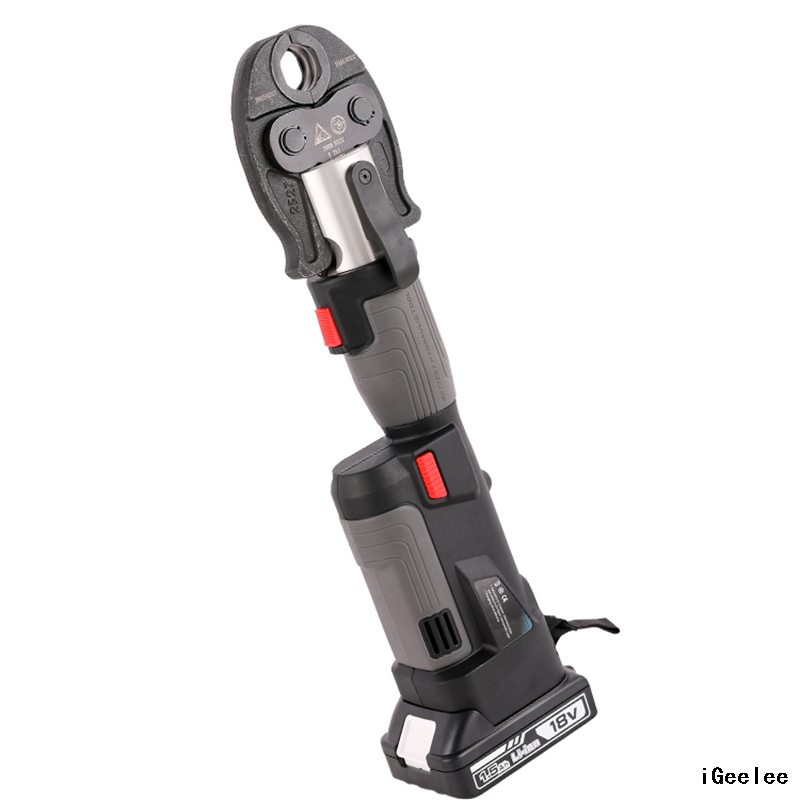

PZ-1930 Mini Pex Pressing Tools with Changeable Dies for Copper, Stainless Pipe Use
You are here: Home » Products » Pipe Installation Tools » Battery Pipe Tools » PZ-1930 Mini Pex Pressing Tools with Changeable Dies for Copper, Stainless Pipe Use

PZ-1930 Mini Pex Pressing Tools with Changeable Dies for Copper, Stainless Pipe Use

Share to:
sharethis sharing button
Micro computer control system with the feature of self- pressure inspecting, double protection during operation, counting and realize the exchange between computer with data by the converter.
  • PZ-1930

  • iGeelee

Availability:
Quantity:

PZ-1930 Mini Pex Pressing Tools with Changeable Dies for Copper, Stainless Pipe Use


       Rated crimping force:        24KN
       Rated working pressure:        50Mpa
       Piston stroke:        35mm
       Application:        Copper,Stainless Steel Multilayer composite Pipe,Pex Pipe
       Clamping cycle:        3-8s
       Working temperature:        -10℃~40℃
       Battery:        18V 3.0Ah Li-ion
       Charger:        100~240V, AC50~60Hz
       Charging time:        2Hours
       ACCESSORIES:
       Battery:        2pcs
       Charger:        1pc
       Sealing ring of safety valve:        1

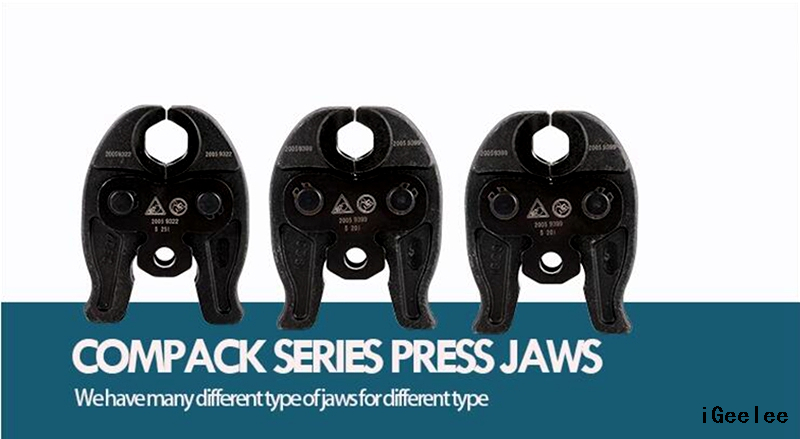

      Clamp die specification for thin-wall stainless steel pipe,copper pipe(nominal outer diameter)      SV type:15,18,22,28mm

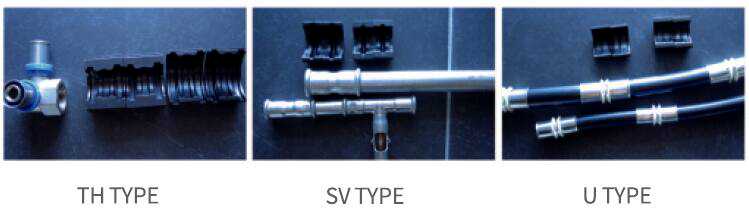

Clamp die specification for XPAP

TH type:16,20,26,32mm

U type:16,20,25,32mm

Clamp die specification for PEX 15(3/8"),18(1/2"),20(5/8"),24(3/4"),30(1")

NOTE:ln order to meet demand please provide appropriate size and a standard of tube when place order.




 EZ-1528 Mini StainlessSteel Pex Pressing Tools


High performance Li-ion battery to provide stronger power source, no discharge memory effects,
1. Sudden suspend.
2. Ergonomic design with antislip handle.
3. Micro computer control system with the feature of self- pressure inspecting, double protection   during operation, counting and realize the exchange between computer with data by the converter.
4. High performance Li-ion battery to provide stronger power source, no discharge memory effects, one time charge 300 times can be effective for crimping.
5. LED light make your working comfortable in dark environment.



 EZ-1528 Mini StainlessSteel Pex Pressing Tools


High performance Li-ion battery to provide stronger power source, no discharge memory effects,
1. Sudden suspend.
2. Ergonomic design with antislip handle.
3. Micro computer control system with the feature of self- pressure inspecting, double protection   during operation, counting and realize the exchange between computer with data by the converter.
4. High performance Li-ion battery to provide stronger power source, no discharge memory effects, one time charge 300 times can be effective for crimping.
5. LED light make your working comfortable in dark environment.
