PZ-1550
iGeelee
Availability: | |
---|---|
Quantity: | |
Description | LI-ION Battery Powered Hydraulic tool |
Rated power | 32KN |
Stroke | 40mm |

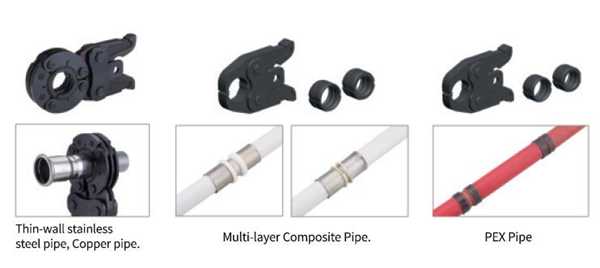

Crimping range | Thin-wall stainless steel pipe, Copper pipe: 12-54mm Pex pipe. XPAP: 12-108mm |
Note: Different pipes in different material caused pressure changes accordingly. | |
Pressing cycle | 4s ( DN25-SS304) |
VAC | 220V 50/60HZ |
Rated power | 490W |
Working temperature | -10℃∽+50℃ |
Measurement | 450x81x130( without jaws) |
Description | LI-ION Battery Powered Hydraulic tool |
Rated power | 32KN |
Stroke | 40mm |
Crimping range | Thin-wall stainless steel pipe, Copper pipe: 12-54mm Pex pipe. XPAP: 12-108mm |
Note: Different pipes in different material caused pressure changes accordingly. | |
Pressing cycle | 4s ( DN25-SS304) |
VAC | 220V 50/60HZ |
Rated power | 490W |
Working temperature | -10℃∽+50℃ |
Measurement | 450x81x130( without jaws) |
FEATURE
Safety: Micro computer control system. Piston retracted automatically when up to preset value
Efficient: High performance motor with double speed hydraulic system promote the pressing process within 4s.
Reliable: Sustainable using add up to 30000 pressing cycles.
Portable: Ergonomic design, straight shank design, portable to bring and operating.
Note: working in varied working temperature, pressing cycle will be changed according to different material pipes.
FEATURE
Safety: Micro computer control system. Piston retracted automatically when up to preset value
Efficient: High performance motor with double speed hydraulic system promote the pressing process within 4s.
Reliable: Sustainable using add up to 30000 pressing cycles.
Portable: Ergonomic design, straight shank design, portable to bring and operating.
Note: working in varied working temperature, pressing cycle will be changed according to different material pipes.
