Hydraulic Tools To Make Your Job Easier!
EZ-4525 Battery Air Conditional Ducting Clamping Tool Range From 22.2, 25.4, 28.6 31.8, 34.9, 38.1mm
You are here: Home » Products » Pipe Installation Tools » Battery Pipe Tools » EZ-4525 Battery Air Conditional Ducting Clamping Tool Range From 22.2, 25.4, 28.6 31.8, 34.9, 38.1mm
EZ-4525 Battery Air Conditional Ducting Clamping Tool Range From 22.2, 25.4, 28.6 31.8, 34.9, 38.1mm EZ-4525 Battery Air Conditional Ducting Clamping Tool Range From 22.2, 25.4, 28.6 31.8, 34.9, 38.1mm

loading

EZ-4525 Battery Air Conditional Ducting Clamping Tool Range From 22.2, 25.4, 28.6 31.8, 34.9, 38.1mm

Share to:
sharethis sharing button

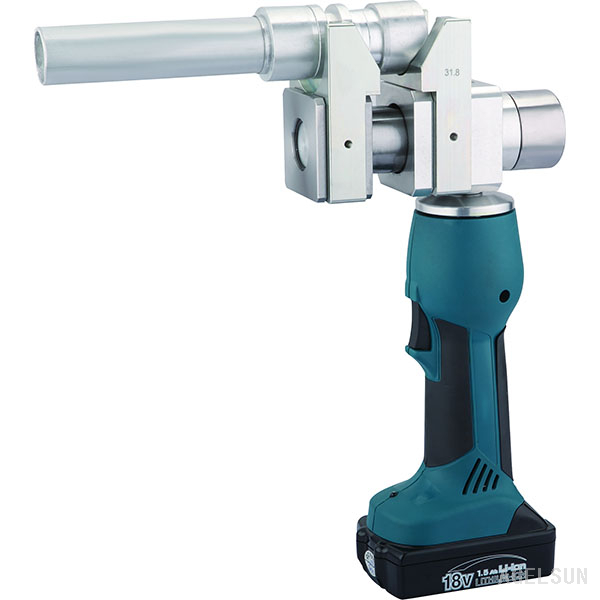

iGeelee EZ-4525 Battery Air Conditional Ducting Clamping Tool range from 22.2, 25.4, 28.6 31.8, 34.9, 38.1mm, Hydraulic Oil S2V HV15(Shell Tellus S2V HV15)
  • EZ-4525

  • iGeelee

Availability:
Quantity:

EZ-4525 Battery Air Conditional Ducting Clamping Tool Range From 22.2, 25.4, 28.6 31.8, 34.9, 38.1mm



Clamping Force       45KN
Stroke           25mm

Hydraulic Oil

       S2V HV15(Shell Tellus S2V HV15)
Connecting/ charge           320 times
Clamping cycle

        3s-10s

Battery voltage

        18V

Battery capacity

       3.0 Ah

Voltage Available       100-240V AC
Package         Plastic case
Accessories
Crimping mold configuratio          22.2, 25.4, 28.6 31.8, 34.9, 38.1mm
Battery

      2pcs

Charger
      1pc
Sealing ring of cylinder        1set

Sealing ring safety valve

      1set



EZ-1240 mini battery pex press fitting tools



1. 350° rotary head with flip top crimping head , working at any site.

2. Sudden suspend function can be controlled at any time, even can retract manually.

3. According to ergonomic design with antislip handle.

4. Micro computer control system with the feature of self-pressure inspecting, double protection during operation, counting and realize the exchange between computer with data by the converter.

5. High performance Li-ion battery to provide stronger power soure, no discharge memory effects, one time charge 300 times can be effective for crimping.

6. LED light make your working comfortable in dark environment.

7. Precision hydraulic valve control system and electric sensor control system of double safety monitoring protection.

8. USB connect to memory crimping time
