BZ-300B Min Power Battery Hydraulic Copper And Aluminum Cable Lug Crimping Tools Crimp for 16-300mm2
You are here: Home » Products » Wire Installation Tools » Battery Cable Tools » BZ-300B Min Power Battery Hydraulic Copper And Aluminum Cable Lug Crimping Tools Crimp for 16-300mm2

BZ-300B Min Power Battery Hydraulic Copper And Aluminum Cable Lug Crimping Tools Crimp for 16-300mm2

Share to:

LCD Data Display-The Total Crimping Times, Electricity Power, Errors Info can be checked by the Display, also we can special making for customer to show the pressure if necessary.

  • BZ-300B
  • iGeelee
Quantity:

BZ-300B min power battery hydraulic copper and aluminum cable lug crimping tools crimp for 16-300mm2



1.Product Description



TECHNICAL DATA
Item No:BZ-300B
 Crimping force: 60KN
 Stroke:17mm
Crimp/charge:300times(Cu150mm2)
 Voltage of battery: 18V
 Capacity: 3.0Ah
Voltage:100-240V AC

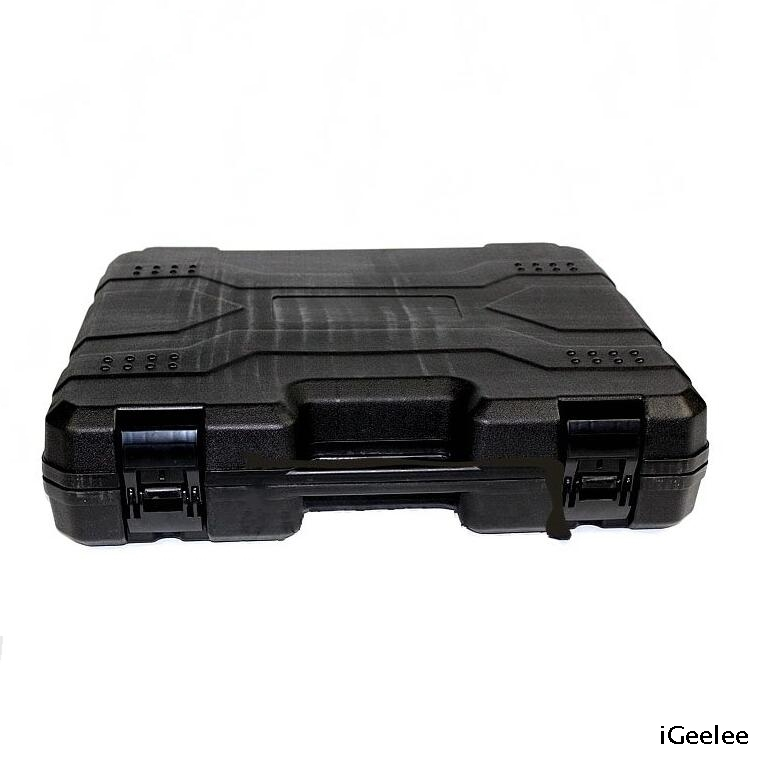

Package:Plastic box
ACCESSORIES
CRIMPING DIES 16,25,35,50,70,95,120,150,185,240,300MM2

 Battery:

 2pcs
 Charger: 1pc
 sealing ring of cylinder: 1set
 sealing ring of safety valve: 1set

FEATURES



BZ-300B min power battery hydraulic copper and aluminum cable lug crimping tools crimp for 16-300mm2



1. All tools can be controlled by one key-press the trigger to start working, half loosing the trigger means



   stop  forcing pressure, loosing fully means piston return to the original position.



2. LCD Data Display-The Total Crimping Times, Electricity Power, Errors Info can be checked by the Display,



    also we can special making for customer to show the pressure if necessary.



3. Air Cooling Heat dissipation system to extend using.



4. Heads Rotates 350 degree in order to gain better access to tight corners or other difficult working areas.



5. Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of non



 operation the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more



 capacity and shorter charging cycles copare to NiMH batteries.



6. The unit is equipped with a double piston pump which is characterised by a rapid approach of the dies forwards the connector and a slow crimping motion



7. USD connect to memory crimping time
