Battery Hydrauilc Wire Crimper for copper lug and terminals with battery power and no dies required,range up to 240mm2 BZ-6B
|Crimping Force ||60KN |
|Stroke ||35mm |
|Crimps per charge||250 times (Cu 150mm2 ) |
|Crimping cycle ||3-6s (depends on the size of cable) |
|Battery voltage ||18V|
|Battery capacity||3.0 Ah |
|Package ||Steel case |
|Sealing ring of cylinder |
|Sealing ring safety valve |

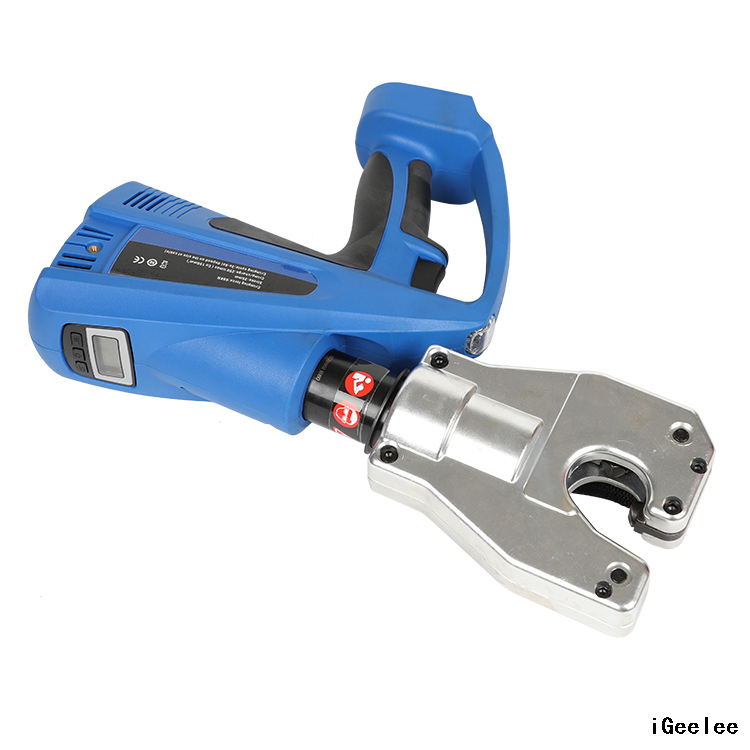

Battery Powered Crimping Tool BZ-6B for Cu terminals up to 240mm2,with no dies required of wide crimping,the connection material centring automatically when crimping
Battery powered crimping tool up to 240mm2
Micro computer control system-automatically detect the pressure when it is crimping, with double safety protect.
Pressure released automatically Function-the tool stop forcing the pressing and release 90% pressure when the pressure reached maximum.
The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.
One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.
Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
