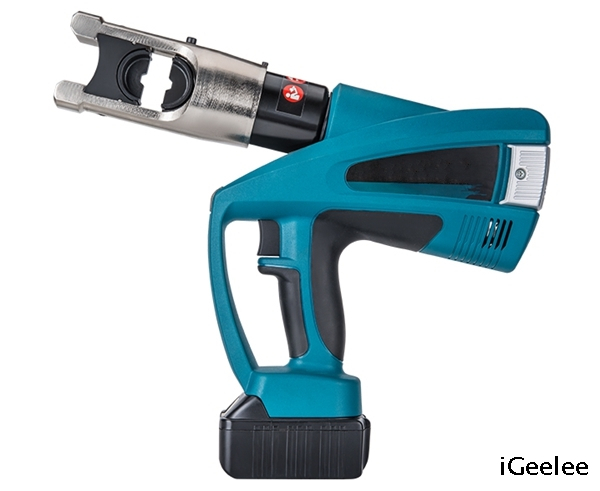

Hydraulic Compression Tools with H Type, Micro Computer Control System, for Crimping Copper And Aluminum Terminals BZ-400U
You are here: Home » Products » Wire Installation Tools » Battery Cable Tools » Hydraulic Compression Tools with H Type, Micro Computer Control System, for Crimping Copper And Aluminum Terminals BZ-400U

Hydraulic Compression Tools with H Type, Micro Computer Control System, for Crimping Copper And Aluminum Terminals BZ-400U

Share to:

The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.

  • BZ-400U
  • iGeelee
Quantity:

Hydraulic Compression Tools with H Type, Micro Computer Control System, for Crimping Copper And Aluminum Terminals BZ-400U



crimping Force     120KN
Stroke     20mm

Crimps per charge     150 times  (Cu 150mm2 )
crimping cycle     4-12s (depends on the size of cable)

Battery voltage     18V
Battery capacity     3.0 Ah

Charging time     2hours
Package     Steel case
Accessories
crimping Dies.     16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400mm2
Battery     2pcs
Charger     1pcs
Sealing ring of cylinder     1set
Sealing ring safety valve     1set



BZ-400U Battery hydraulic compression tools with Micro Computer Control System,for crimping Copper and Aluminum Terminals

Battery powered crimping tool 16,25,35,50,70,95,120,150,185,240,300,400mm2


 Micro computer control system-automatically detect the pressure when it is crimping, with double safety protect.

 The tool equipped with a double piston pump which characterized by a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.

 If a deviation from the set operation pressure or low battery charges is identified, an acoustic signal sounds and a red display flashes.

 One key control-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.

 A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
