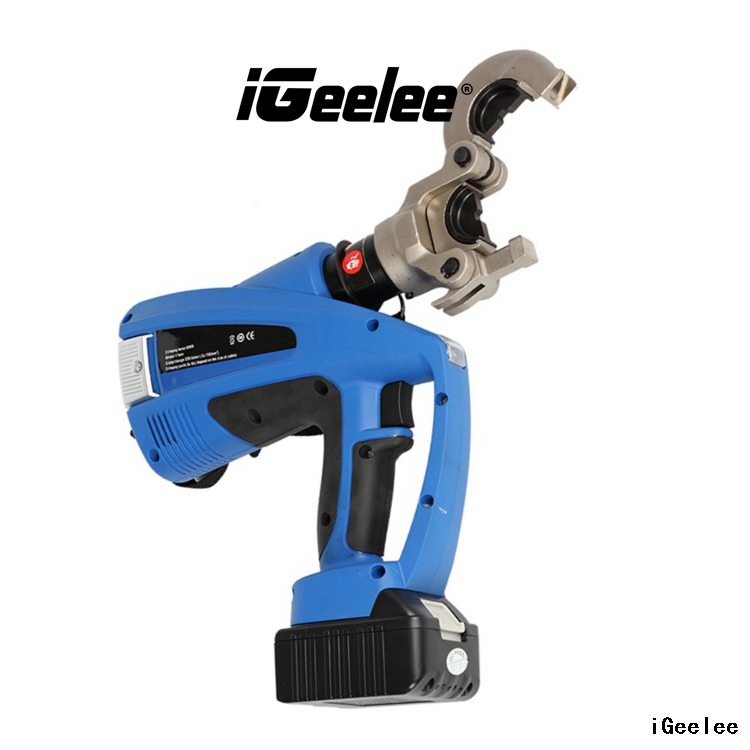

Battery Hydraulic Power Crimping Tool for Cable Lug Up To 300mm2,head Rotates 360° BZ-300

Share to:
sharethis sharing button
Hydraulic Power Crimping tool with crimping force of 60KN for 16-300mm2 cable use
  • BZ-300

  • iGeelee

Availability:
Quantity:

Battery Hydraulic Power Crimping Tool for Cable Lug Up To 300mm2,head Rotates 360° BZ-300



Crimping Force    60KN
Stroke 17mm
Crimps per charge  320 times  (Cu 150mm2 )
Crimping cycle     3-6s (depends on the size of cable)
Battery voltage    18V
Battery capacity     3.0Ah
Charging time   2hours
Package   Plastic Box
Accessories
Crimping Dies.    16, 25, 35, 50, 70, 95, 120, 150, 185, 240,300mm2
Battery     2pcs
Charger    1pcs
Sealing ring of cylinder  1set
Sealing ring safety valve  1set



BZ-300 Hydraulic Power Crimping tool crimp cable lug range of 16,25,35,50,70,95,120,150,185,240,300mm2,head rotates 360°

Hydraulic Power Crimping tool with crimping force of 60KN for 16-300mm2 cable use

The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.

A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.

The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.

The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.

Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.

A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
