EZ-60UNV
iGeelee
| Availability: | |
|---|---|
| Quantity: | |
| Crimping Force | 60KN |
| Stroke | 42mm |
| Cutting Cycle | 70 times |
| Cutting Range | Φ40mm(Cu/Al and armoured cable) |
| Crimping Cycle | 320 times |
| Crimping Range | 16-300mm2 |
| Punching Cycle | 100 times |
| Punching Range | Φ22.5-Φ61.5 |
| Round punch Max. | 61.5mm |
| Battery voltage | 18V |
| Battery capacity | 3.0 Ah |
| Charging time | 2hours |
| Package | Plastic case |
| Accessories | |
| Crimping dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 |
| Punches&die(Type C) | 22.5, 28.3, 34.6, 43.2, 49.6, 61.5mm |
| Blade | 1 set |
| Adapter for crimping | 1 pc |
| Adapter for punching | 1 pc |
| 3/4", 16UN Draw stud | 1 pc |
| 7/16, 20UN Draw stud | 1 pc |
| Spacer | 1 pc |
| Battery | 2 pcs |
| Charger | 1 pc |
| Sealing ring of cylinder | 1 set |
| Sealing ring safety valve | 1 set |

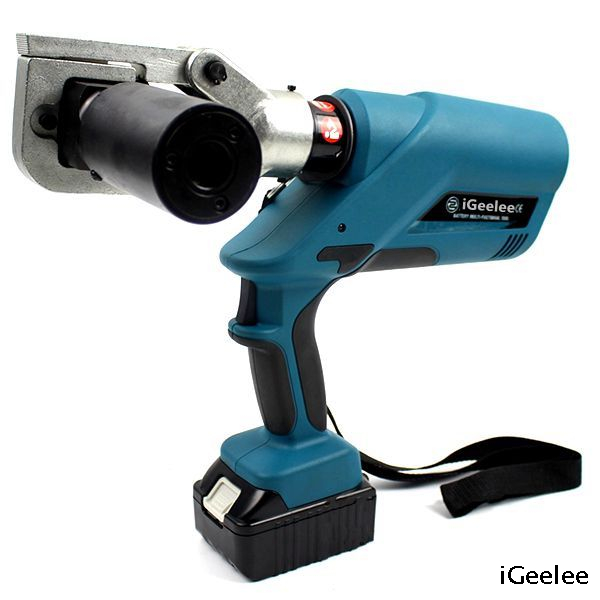

Multifunction Power Tool with Battery for 16-300mm2 Cu and Al cable,function of crimp,cut and strip.
Multifunction Power Tool with Battery,crimping dies of 16,25,35,50,70,95,120,150,185,240,300mm2,punches dies of 22.5,28.3,34.6,43.2,49.6,61.5mm2,for Cu compression cable lugs and compression joints 16-300mm2,Al compression cable lugs and compression joints 10-240mm2,Blade for φ40mm Cu/Al cable and Armored Cu/Al cable,round pounches forφ22.5-61.5mm in the 3.5nn middle steel
EZ-60UNV Multifunction Power Tool with Battery,crimping dies of 16,25,35,50,70,95,120,150,185,240,300mm2,punches dies of 22.5,28.3,34.6,43.2,49.6,61.5mm2,for Cu compression cable lugs and compression joints 16-300mm2,Al compression cable lugs and compression joints 10-240mm2,Blade for φ40mm Cu/Al cable and Armored Cu/Al cable,round pounches forφ22.5-61.5mm in the 3.5nn middle steel
The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.
A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.
The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.
The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
| Crimping Force | 60KN |
| Stroke | 42mm |
| Cutting Cycle | 70 times |
| Cutting Range | Φ40mm(Cu/Al and armoured cable) |
| Crimping Cycle | 320 times |
| Crimping Range | 16-300mm2 |
| Punching Cycle | 100 times |
| Punching Range | Φ22.5-Φ61.5 |
| Round punch Max. | 61.5mm |
| Battery voltage | 18V |
| Battery capacity | 3.0 Ah |
| Charging time | 2hours |
| Package | Plastic case |
| Accessories | |
| Crimping dies | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 |
| Punches&die(Type C) | 22.5, 28.3, 34.6, 43.2, 49.6, 61.5mm |
| Blade | 1 set |
| Adapter for crimping | 1 pc |
| Adapter for punching | 1 pc |
| 3/4", 16UN Draw stud | 1 pc |
| 7/16, 20UN Draw stud | 1 pc |
| Spacer | 1 pc |
| Battery | 2 pcs |
| Charger | 1 pc |
| Sealing ring of cylinder | 1 set |
| Sealing ring safety valve | 1 set |
Multifunction Power Tool with Battery for 16-300mm2 Cu and Al cable,function of crimp,cut and strip.
Multifunction Power Tool with Battery,crimping dies of 16,25,35,50,70,95,120,150,185,240,300mm2,punches dies of 22.5,28.3,34.6,43.2,49.6,61.5mm2,for Cu compression cable lugs and compression joints 16-300mm2,Al compression cable lugs and compression joints 10-240mm2,Blade for φ40mm Cu/Al cable and Armored Cu/Al cable,round pounches forφ22.5-61.5mm in the 3.5nn middle steel
EZ-60UNV Multifunction Power Tool with Battery,crimping dies of 16,25,35,50,70,95,120,150,185,240,300mm2,punches dies of 22.5,28.3,34.6,43.2,49.6,61.5mm2,for Cu compression cable lugs and compression joints 16-300mm2,Al compression cable lugs and compression joints 10-240mm2,Blade for φ40mm Cu/Al cable and Armored Cu/Al cable,round pounches forφ22.5-61.5mm in the 3.5nn middle steel
The hydraulic unit incorporates an automatic retraction which returns the piston into its starting position when the maximum operating pressure is reached.
A manual retraction allows the user to return the piston into the starting position in case of an incorrect crimp. The unit is equipped with a special brake when stops the forward motion of the piston & die when the trigger is released.
The unit is equipped with a double piston pump which is characterized by a rapid approach of the dies forwards the connector and a slow crimping motion.
The crimping head can be smoothly turned by 350° around the longitudinal axis in order to gain better access to tight corners and other difficult working areas.
Li-ion batteries do neither have a memory effect nor self discharge. Even after long periods of no operation, the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles compare to NiMH batteries.
A Temperature sensor makes the tool stop working automatically when the temperature over 60℃ under long time working, the fault signal sounds, it means the tool can’t continue work until the temperature reduced to the normal.
